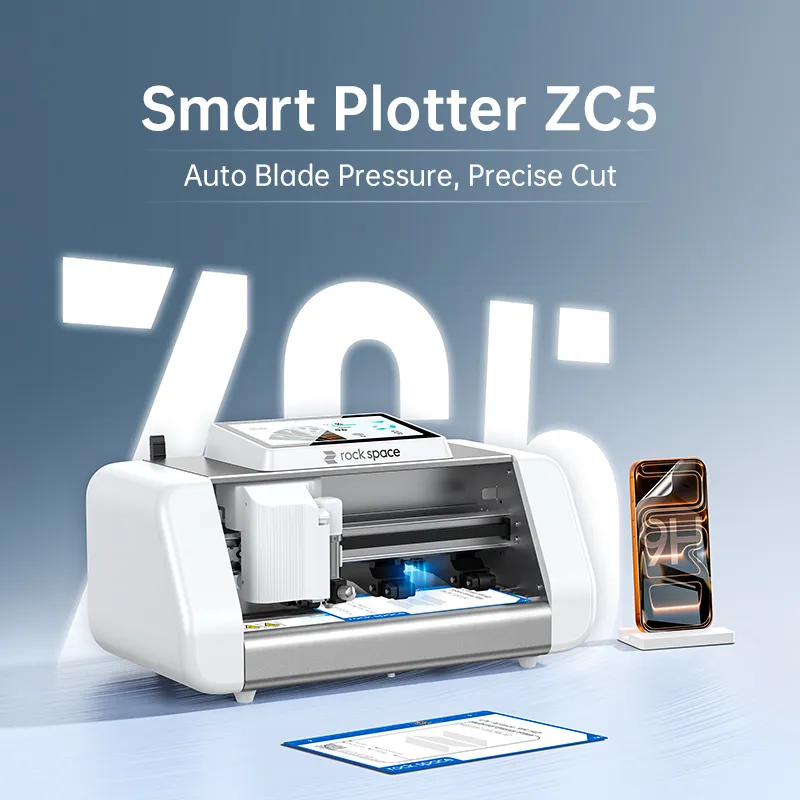

Automatic screen protector cutting machine with auto blade pressure system. Scan film QR code to auto-identify type and set cutting parameters — zero manual adjustment. Cuts TPU, hydrogel, privacy, and 9H UV Hybrid glass film in one clean pass. 65,000+ templates, 7" HD touchscreen, 500mm/s. The zero inventory solution for phone accessory stores, repair shops, and distributors.

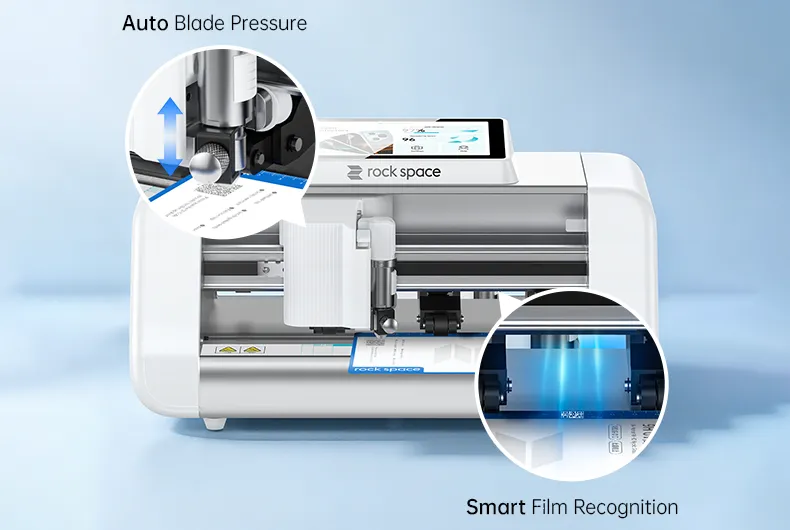

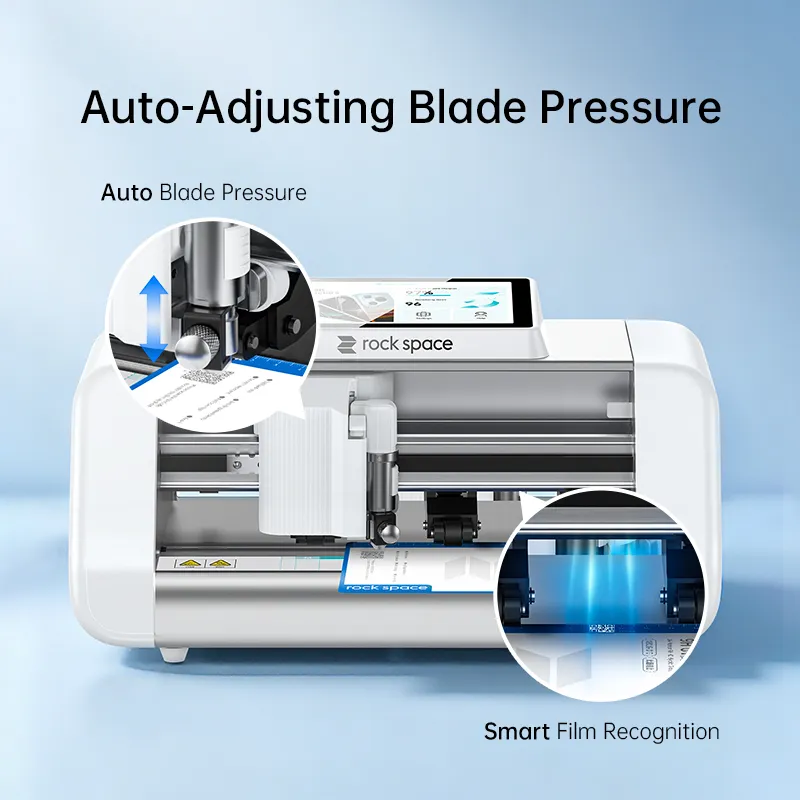

Scan film QR code → auto-identify film type → auto-set blade pressure & depth. This smart cutting system handles 10+ film categories with zero manual adjustment, offering beginner friendly operation and zero error cutting.

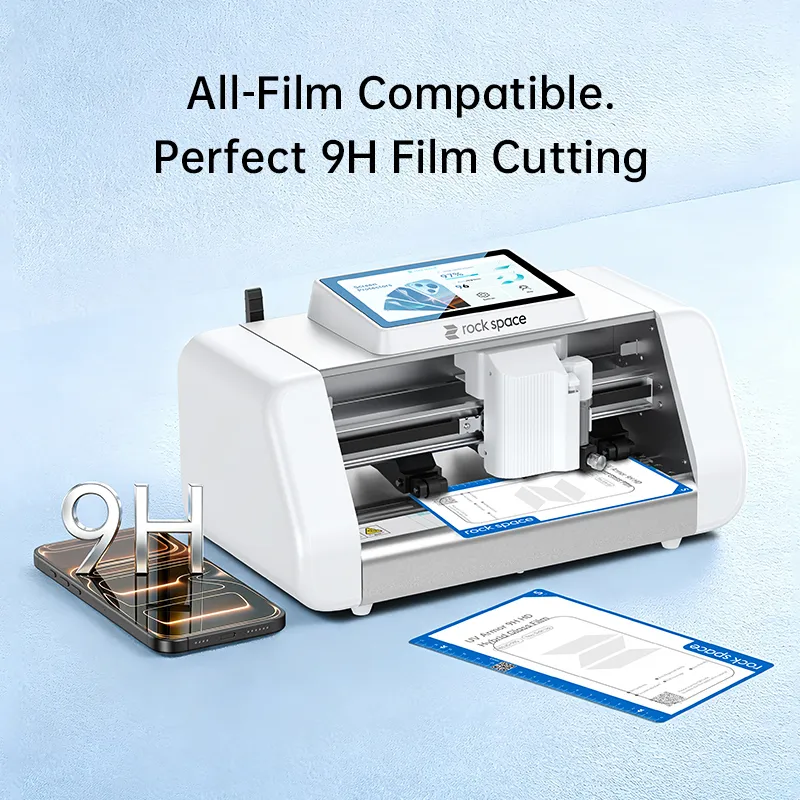

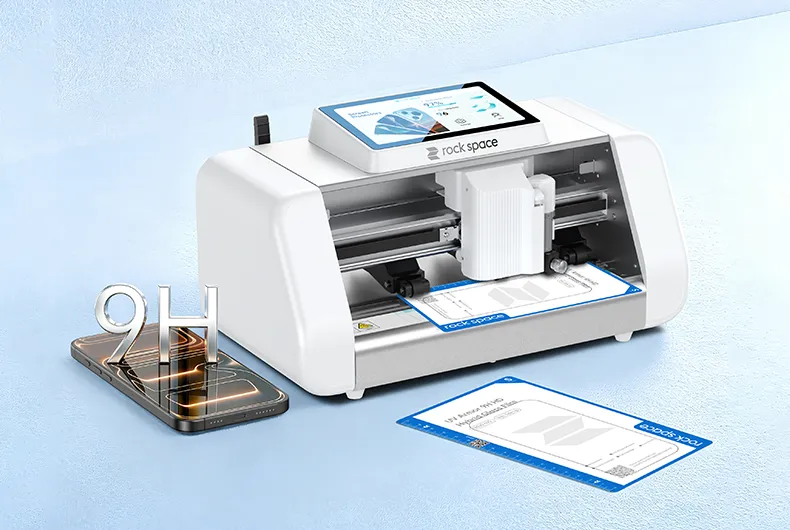

1500g cutting force handles all materials — a versatile cutting plotter for screen protector production. High precision cutting delivers edge smooth cutting on both high hardness 9H hybrid glass film, or hydrogel TPU and EPU film.

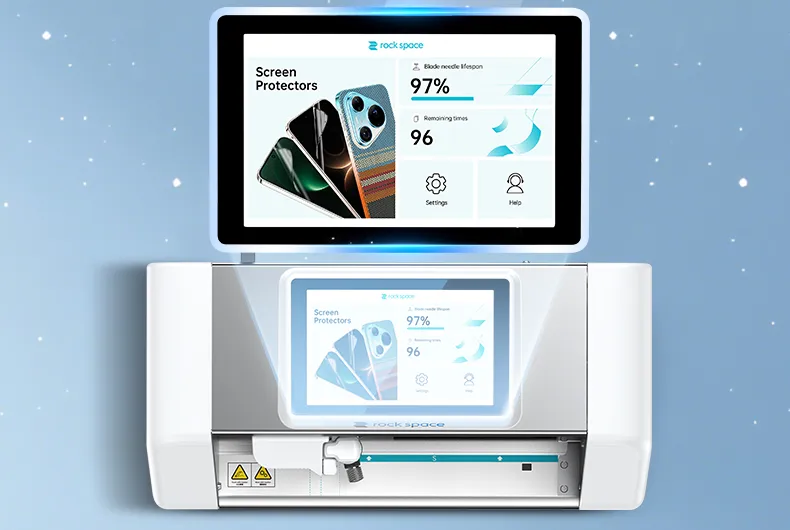

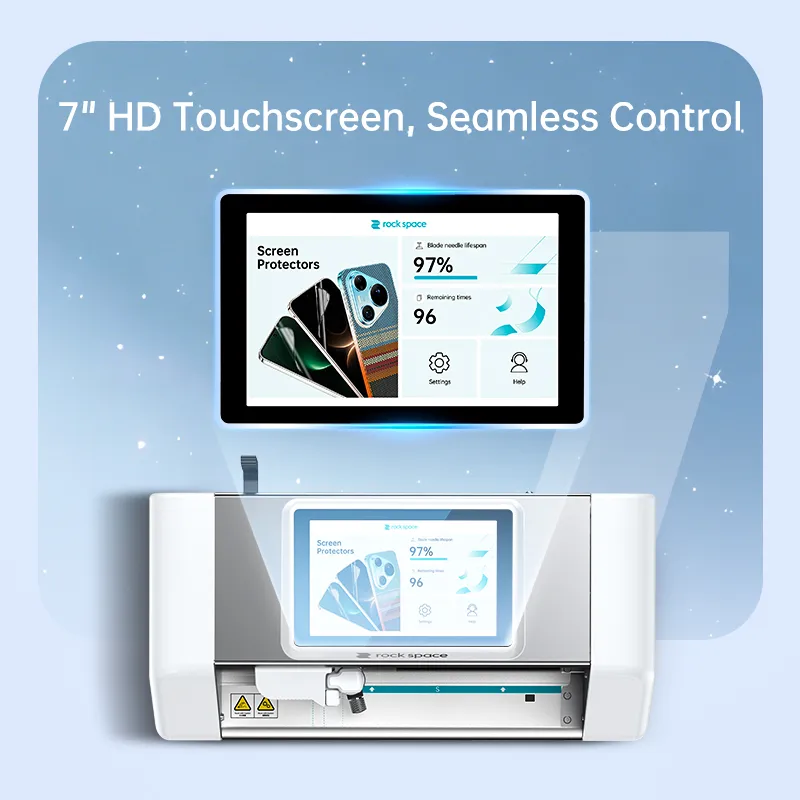

The 7" HD touchscreen delivers fast response with one-tap operation — a true high efficiency cutting machine. Compared with the conventional 5.5-inch screen, it offers a wider field of view and clearer menu operation.
Automatically counts store film cutting data, equipment usage frequency, and operation data for clear visibility.
Data-driven management avoids data gaps and ensures better performance.
65,000+ Templates with Real-time Updates
Covers mainstream brands and models, with new phone data updated 24 hours a day. Never miss the replacement bonus and firmly seize the traffic trend.
| Model | ZC5 |
| Max Film Feeding Width | 300mm |
| Max Cutting Width | 200mm |
| Cutting Accuracy | 0.1mm |
| Cutting Speed | 500mm/s |
| Max Blade Pressure | 1500g |
| Control Panel | 7-inch Color LCD Touchscreen |
| Output | DC 24V/2.7A |
| Connectivity | WiFi 2.4G&5G |
| Power Consumption | ＜50W |
| Operating Temperature | 5℃-35℃ |
| Machine Dimensions | 408*216*214mm |
| Net Weight | 6.6kg |
| ackage Dimensions | 485*320*275mm |
Q: How does the ZC5 machine automatically adjust cutting pressure and depth?
A: Equipped with a built-in camera, it automatically scans QR codes on films, identifies material types, and matches corresponding pressure and depth for optimal cutting.
Q: How and when to calibrate the blade?
A: Calibration sets the baseline cutting depth (similar to zero setting). It is done via the built-in software by testing different cutting lengths on film. Manual selection of the best result is required. Recalibrate after every blade replacement. Please view the video for detailed operation.
Q: What devices can the ZC5 cutting machine cut films for?
A: ZC5 works for mobile phones up to 8.2 inches and tablets up to 12.2 inches. It supports S, M and L size film sheet.
Q: How soon will the cutting templates be updated when a new model is released?
A: The template data will be updated within 24 hours of the new model's release.
